Systematic comparison of 7 SMoE algorithms across language and vision-language tasks, all under resource-constrained settings accessible to the broader research community.

5.67B

Parameters (Sparse Upcycling)

53.44%

Best Avg Acc (SharedE-V3 1.2M)

50.88%

Best Avg Acc (XMoE 665K)

35h

MoE Training Time

LLaVA + OneVision (1.2M Samples) ViT Backbone · 5.67B Parameters · K=3 Active Experts

Method	AI2D	TextVQA	GQA	MMBench	HalBench	MathVista	MMMU	MMStar	Pope	MME	MME RW	OCR	AVG Acc	AVG Rank
SMoE	69.56	43.93	61.51	71.31	46.90	37.90	41.56	41.23	86.28	63.33	27.83	37.50	52.40	5.96
XMoE	69.72	43.93	61.52	72.25	47.42	38.50	42.11	43.99	86.61	63.81	29.18	39.40	53.20	3.33
σ-MoE	69.79	44.69	61.70	71.74	47.00	38.40	43.11	42.08	86.69	63.80	29.70	38.40	53.09	3.33
SharedE-V2	70.56	45.04	61.34	71.13	47.11	39.50	42.78	42.73	86.53	63.93	29.55	38.70	53.24	3.33
SharedE-V3	71.92	44.59	61.93	72.59	46.37	38.20	42.33	43.30	86.78	64.61	29.29	39.40	53.44	2.46
TC-MoE	70.08	43.75	61.89	71.05	45.74	38.10	41.89	43.64	86.76	63.05	31.84	38.30	53.01	4.50
MoE++	70.13	43.37	61.52	71.39	46.16	38.60	40.78	43.24	86.60	63.26	28.19	37.50	52.56	5.08

LLaVA (665K Samples) ViT Backbone · 5.67B Parameters · K=3 Active Experts

Method	AI2D	TextVQA	GQA	MMBench	HalBench	MathVista	MMMU	MMStar	Pope	MME	MME RW	OCR	AVG Acc	AVG Rank
SMoE	65.52	41.51	61.62	72.25	41.75	29.50	41.67	42.24	87.13	61.05	32.15	31.70	50.67	3.42
XMoE	65.84	41.96	61.61	72.16	41.85	31.60	41.67	40.32	86.64	60.95	32.73	33.20	50.88	3.08
σ-MoE	65.52	42.08	61.74	71.22	40.80	30.30	41.22	41.99	86.64	61.44	32.31	32.50	50.65	3.71
SharedE-V2	64.77	41.96	61.27	71.74	41.85	30.90	43.33	41.56	86.82	60.52	32.88	31.40	50.75	3.67
SharedE-V3	65.58	42.06	61.26	72.42	41.43	30.60	42.44	41.75	86.81	60.93	31.47	32.60	50.86	3.33
TC-MoE	65.50	40.70	61.19	71.22	42.06	29.30	41.22	41.10	86.53	60.30	31.89	33.00	50.34	5.42
MoE++	65.03	41.44	60.61	71.74	42.69	30.30	43.00	40.32	86.58	60.11	31.32	31.20	50.36	5.38

Note: MME represents sum of perception and cognition score. MME RW represents MME RealWorld. AVG Acc refers to average accuracy across all tasks. AVG Rank denotes the average ranking across all metrics.

66 / 8

Total / Active Experts

44.66%

Best Avg Acc (SharedE-V2 0.15B)

50.16%

Best Avg Acc (MoE++ 0.68B)

6–43h

LM Training Time

Small Model (0.15B Parameters) Pretraining Setting · 66 Total Experts · K=8 Active Experts

Method	PPL ↓	LAMBADA	BLiMP	CBT	HellaSwag	PIQA	ARC-E	RACE	SIQA	CommonSenseQA	AVG Acc	AVG Rank
SMoE	13.63	25.27	77.71	84.18	29.43	57.94	32.68	30.11	35.62	24.65	44.18	4.50
XMoE	13.98	24.57	76.53	84.12	29.34	58.27	32.26	29.69	35.47	24.49	43.86	6.45
σ-MoE	13.61	25.43	77.38	84.23	29.13	58.92	32.73	31.05	34.90	24.90	44.30	4.30
SharedE-V2	13.49	25.29	77.37	84.33	29.38	60.17	33.83	31.02	35.57	24.98	44.66	2.80
SharedE-V3	13.42	25.49	77.20	84.40	29.38	59.14	32.52	30.60	35.57	25.47	44.42	3.20
TC-MoE	13.51	25.60	76.91	84.68	29.27	59.03	33.02	30.63	36.03	26.37	44.62	2.90
MoE++	13.54	25.45	77.23	84.83	29.28	58.49	33.49	30.11	35.62	24.49	44.33	3.85

Large Model (0.68B Parameters) Pretraining Setting · 66 Total Experts · K=8 Active Experts

Method	PPL ↓	LAMBADA	BLiMP	CBT	HellaSwag	PIQA	ARC-E	RACE	SIQA	CommonSenseQA	AVG Acc	AVG Rank
SMoE	9.51	37.13	80.47	89.83	37.49	64.36	38.22	33.03	37.41	26.54	49.39	5.15
XMoE	9.66	35.25	80.38	89.35	37.19	64.20	38.99	32.95	37.77	28.34	49.38	5.75
σ-MoE	9.46	37.56	81.08	89.57	37.52	64.91	39.15	32.68	37.67	28.50	49.85	3.60
SharedE-V2	9.52	37.11	80.98	89.93	37.14	64.36	38.06	33.17	36.95	27.35	49.45	5.25
SharedE-V3	9.49	36.88	81.28	89.65	37.32	65.72	38.86	33.12	38.59	28.09	49.95	3.60
TC-MoE	9.38	37.87	81.21	90.19	37.95	64.47	39.28	33.77	37.92	27.85	50.06	2.35
MoE++	9.38	38.80	80.88	89.77	37.70	64.64	39.37	34.02	37.97	28.34	50.16	2.30

Note: PPL represents perplexity (lower is better). LAMBADA, BLiMP, CBT, HellaSwag, PIQA, ARC-Easy, RACE, SIQA, and CommonSenseQA represent task accuracy (%). AVG Acc refers to average accuracy across all tasks. AVG Rank denotes the average ranking across all metrics.

Benchmark Takeaway

Baseline Convergence & Complexity Gaps

Current SMoE methods achieve broadly similar performance under matched compute, and none delivers a clearly dominant accuracy gain relative to the extra routing complexity it introduces. The more practical signal is efficiency: newer designs such as SharedE and MoE++ remain competitive in AVG Acc while reducing training and inference cost, making them stronger choices when runtime and resource budgets matter.

Deep Analysis

Routing Dynamics
Under the Microscope

LibMoE turns routing logs into regime-level diagnostics: whether experts keep changing, whether shared experts stabilize faster under sparse upcycling, and whether layer-wise confidence matches patterns seen in much larger VLMs.

The same probes are applied to from-scratch pretraining (0.15B LLM, 6.55B tokens), VLM sparse upcycling (LLaVA-665K), and Qwen3-VL-30B-A3B as a large-scale reference.

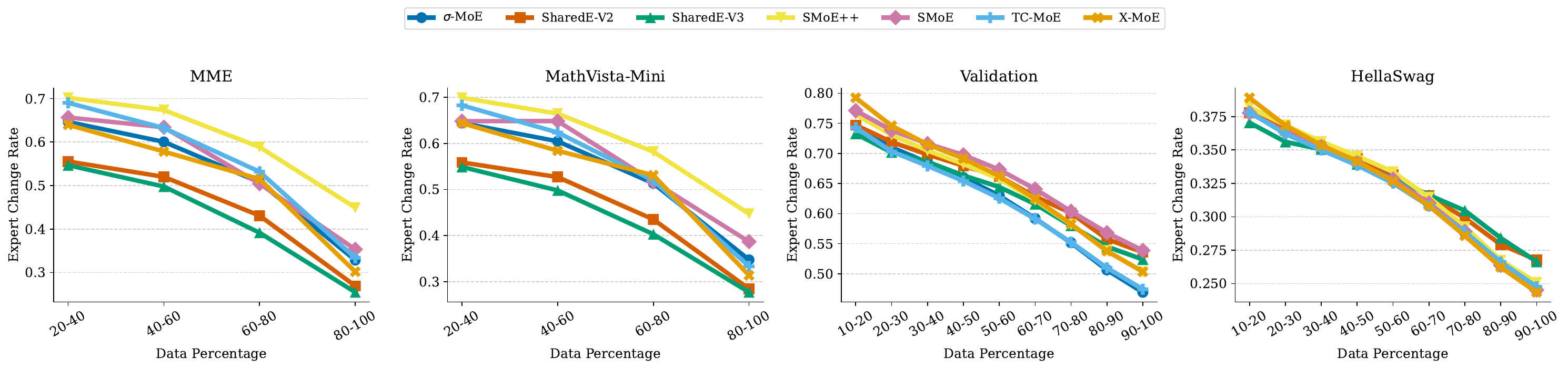

Expert Change Rate throughout training — ECR decreases as training progresses across all SMoE variants

§a — Routing Stability (General)

Routing Stability Is a Training-Regime Signal

ECR measures how often the same tokens switch experts between checkpoints. It falls in both sparse upcycling and from-scratch pretraining, so routers do become more stable over time, but the shape of the curve exposes different optimization regimes. XMoE settles strongly in VLM upcycling, while its higher LM-pretraining volatility suggests a learning-rate and cosine-normalization interaction rather than a universal routing advantage.

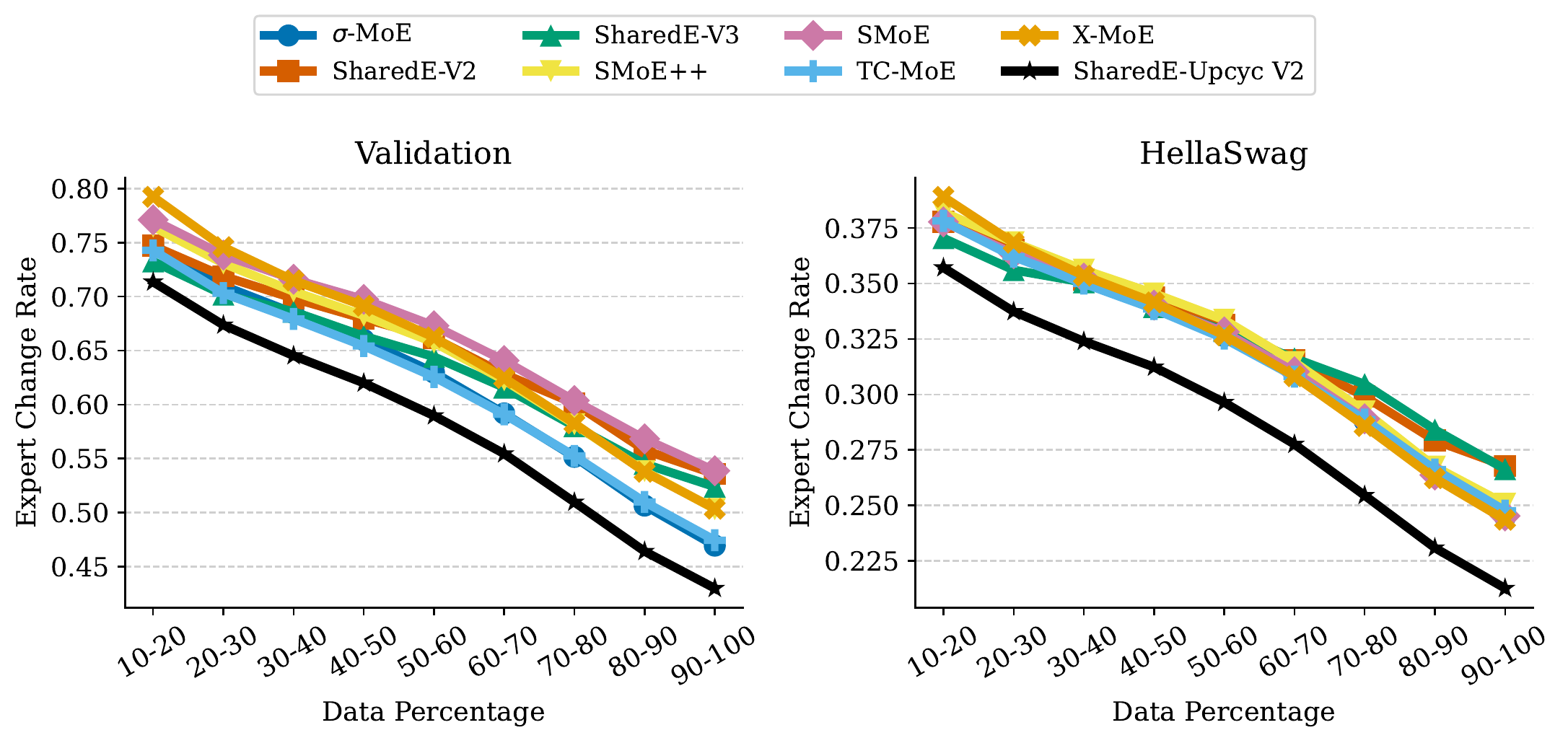

Effect of upcycled shared experts trained on prior tasks on expert change rate during language model pretraining

§a — Routing Stability (Shared Experts)

Pretrained Shared Experts Act as Routing Anchors

SharedE is stable in VLM sparse upcycling because shared experts are inherited from a dense checkpoint and are always active, leaving the router to choose among fewer non-shared experts. In LM pretraining, the shared experts begin random and co-evolve with the router, so their changing function forces repeated reassignment. The control confirms the mechanism: an upcycled shared expert lowers ECR, showing the stabilizing effect comes from pretrained shared structure, not from the SharedE layout alone.

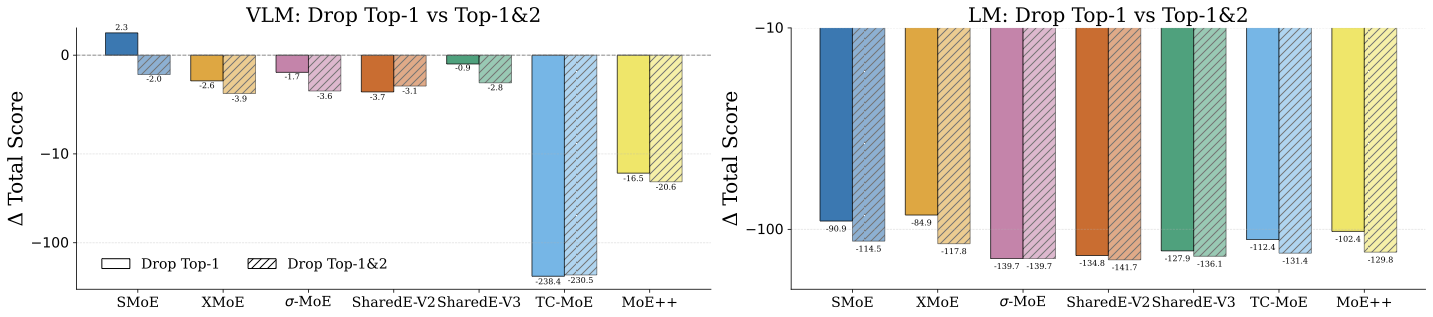

DropTop1 routing perturbation — replacing top-1 expert reveals optimality gaps

§b — Expert Optimality

Perturbing Top-1 Routing Reveals Capacity Gaps

DropTop1 replaces the highest-scoring expert with the next available expert, testing whether the router is truly using capacity well. Most methods degrade, especially in LM pretraining, where precise routing matters uniformly. The VLM result is more diagnostic: vanilla SMoE improves by +2.3 ΔTotal Score, implying its original top-1 choice leaves capacity unused, while TC-MoE drops the most because its sharper task-conditioned routing is powerful but brittle.

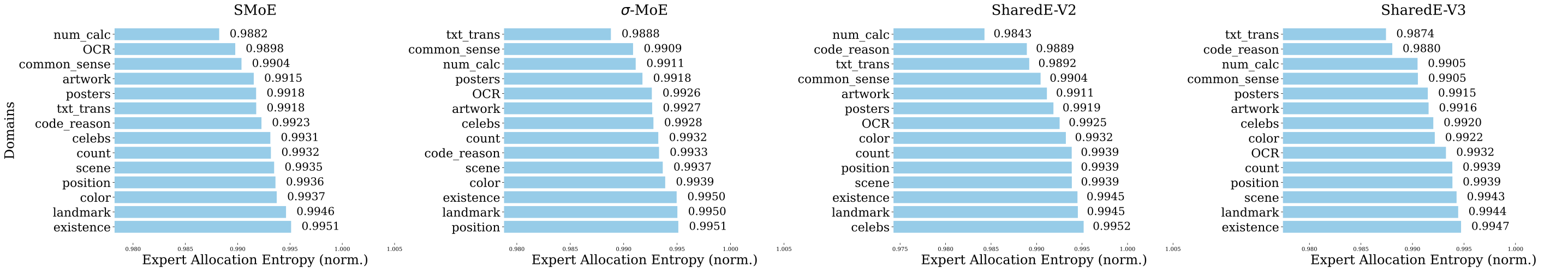

Expert allocation entropy across MME subtasks — reasoning tasks show lower EAE

§c — Domain Specialization (Part I)

Reasoning Tasks Push Routers Toward Sharper Specialization

Expert Allocation Entropy (EAE) measures whether routing spreads tokens broadly across experts or concentrates them on a smaller subset. Reasoning-heavy subtasks such as translation, code reasoning, and numerical calculation consistently reduce EAE, meaning the router moves from broad sharing toward sharper expert separation when inputs become more compositional. The same direction appears in Qwen3-VL, so this is not just a small-model artifact.

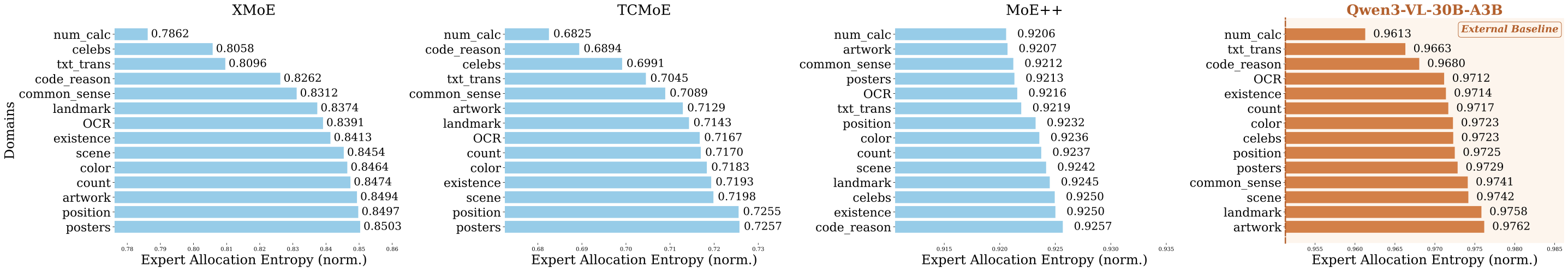

Expert allocation entropy — second row showing TC-MoE over-specialization vs XMoE adaptive behavior

§c — Domain Specialization (Part II)

Entropy Separates Adaptive Specialization from Collapse

The methods fall into distinct regimes. TC-MoE reaches the lowest EAE, around 0.64 in the most concentrated cases, which signals strong specialization but also a risk of overusing a narrow expert subset. XMoE is more useful diagnostically: its wider 0.78-0.85 task-wise spread suggests adaptive specialization, concentrating on harder subtasks while preserving broader coverage on simpler ones. The flatter SMoE-family curves favor coverage and robustness over fine-grained task separation.

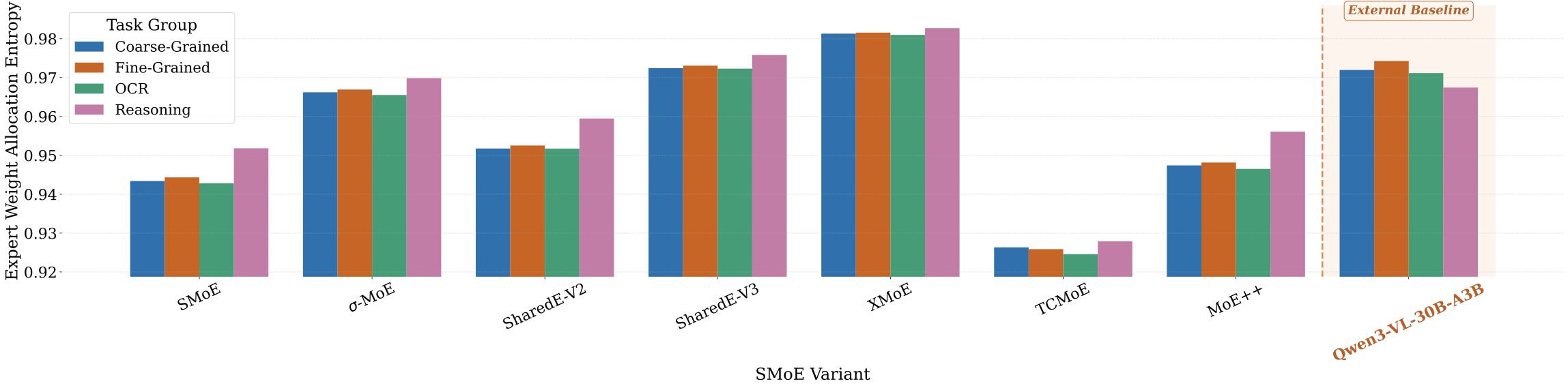

Expert weight allocation entropy — XMoE most uniform, TC-MoE most concentrated

§d — Weight Allocation

Weight Entropy Distinguishes Collaborative and Decisive Routers

EWA looks beyond which experts are selected and asks how much weight each selected expert receives. XMoE, σ-MoE, and SharedE-V3 allocate weight more uniformly, so multiple experts contribute meaningfully to each decision. TC-MoE sits at the opposite extreme: it assigns most mass to a smaller subset across all task groups, making it a decisive router with stronger specialization but less redundancy when its preferred experts are wrong.

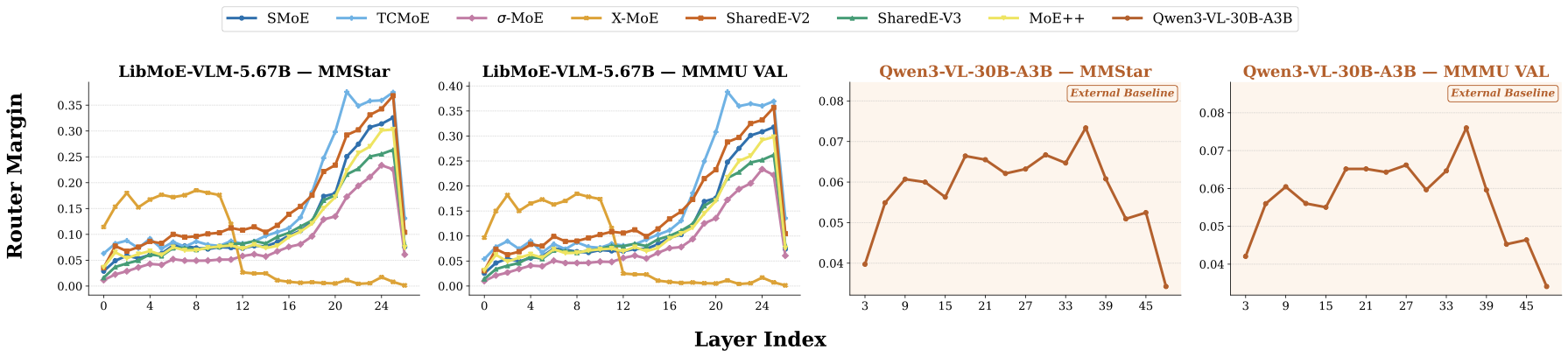

§e — Router Confidence

Router Confidence Rises Late, Then Relaxes

Router margin is the gap between the top-1 and top-2 routing scores. Most LibMoE-VLM methods keep modest margins in early and middle layers, become more decisive in later layers, then relax near the output. Qwen3-VL-30B shows the same qualitative trajectory over many more layers, which suggests LibMoE is capturing a real depth-wise routing pattern. XMoE is the main exception, with margins collapsing toward zero deeper in the network.

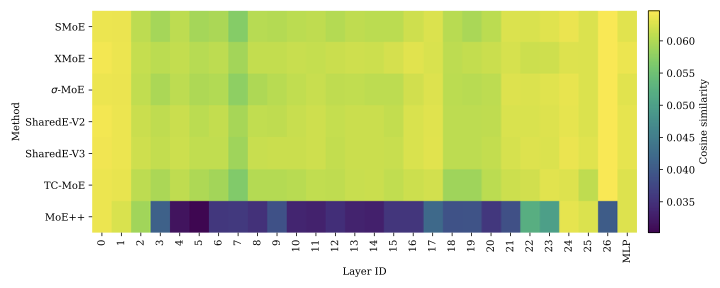

Layer-wise expert cosine similarity — experts diverge despite identical initialization in sparse upcycling — Expert similarity after sparse upcycling

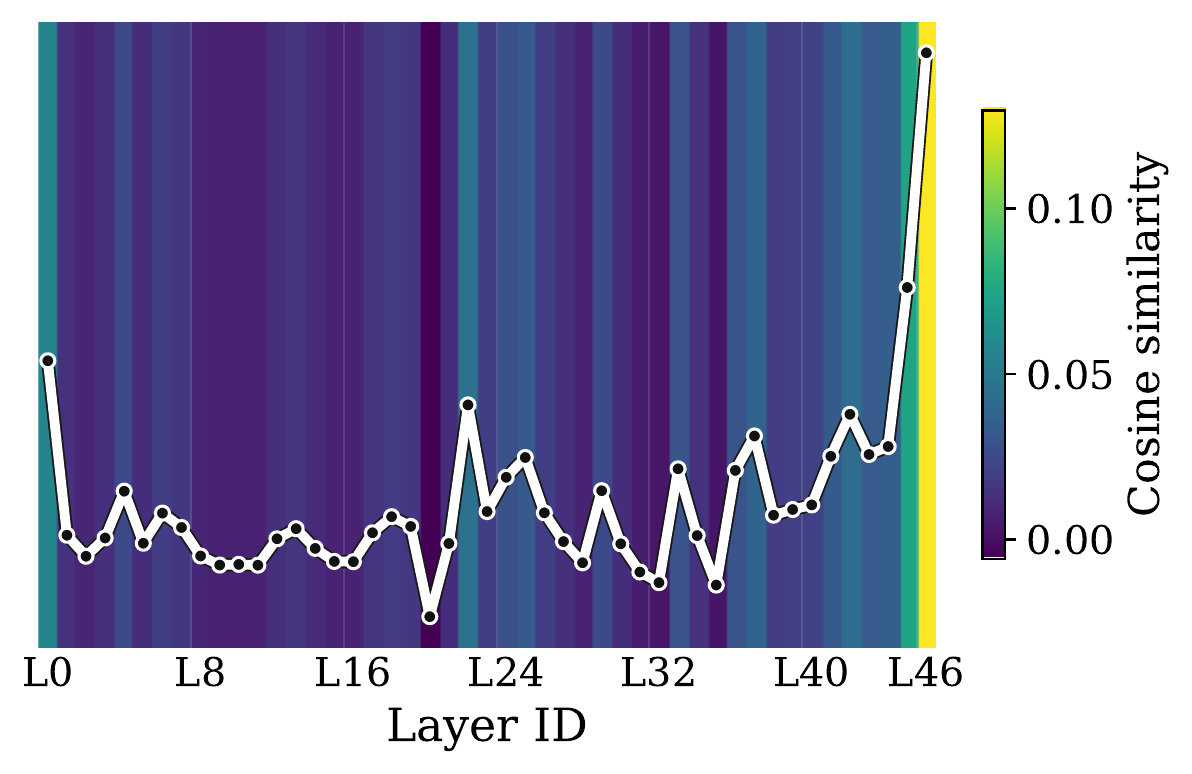

Expert similarity analysis for Qwen3-VL on MMStar — Qwen3-VL expert similarity profile

§f — Expert Similarity

Duplicated Experts Do Not Stay Duplicates

Sparse upcycling begins by duplicating dense layers, so high expert similarity would make the MoE comparison questionable. Instead, most variants quickly develop low cosine similarity, especially in intermediate layers, while boundary layers retain more shared structure. Qwen3-VL shows the same high-at-boundaries, low-in-the-middle pattern, and MoE++ diverges most strongly because its copy and zero experts encourage greater intermediate-layer diversity.

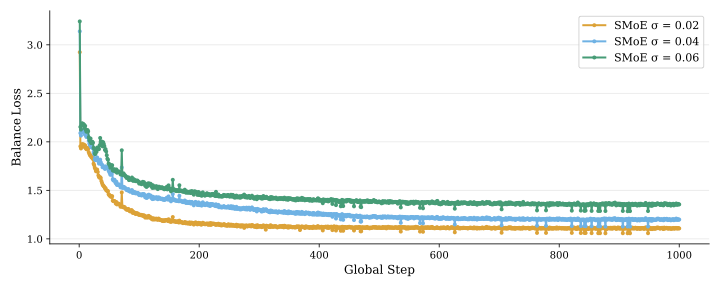

Effect of router init std on balance loss — smaller sigma yields better load balance

§g — Initialization & Load Balance

Router Initialization Is a Cheap Load-Balancing Lever

The balance-loss experiment changes only the router weight initialization standard deviation while keeping the same softmax routing and balance loss. A smaller σ = 0.02 consistently produces lower balance loss than 0.04 or 0.06, showing that the initial logit scale already shapes routing diversity. This is a practical takeaway: tune cheap configuration choices before adding new auxiliary-loss machinery or architectural complexity.

Regime Shapes Stability

Router behavior stabilizes as training progresses: for the same input token, expert choices become less volatile across checkpoints. SharedE is less stable early in from-scratch pretraining because the router must align expert selection with shared experts that are also initialized from scratch and changing under the task loss; after this co-adaptation phase, routing stabilizes again.

Expert Selection Must Use Capacity

Choosing the right top-K experts matters because it reveals whether a router is exploiting the capacity of its MoE architecture. When top experts are perturbed, vanilla SMoE can improve, suggesting unused routing capacity; newer methods generally drop, indicating that their routers already rely more tightly on the selected experts.

Specialization Is Task-Dependent

Routers do not need the same expert spread for every input. Reasoning-heavy tasks produce narrower expert allocation, indicating stronger specialization, while simpler or broader tasks keep routing more distributed. The useful behavior is adaptive specialization: concentrate when the task demands it, but preserve coverage elsewhere.

Expert Weights Stay Collaborative

After experts are selected, the final output is usually not dominated by only one or two experts. Weight allocation remains relatively balanced across selected experts, meaning MoE decisions are often collaborative rather than a single-expert takeover.

Initialization Is a Cheap Balancing Lever

Router initialization already shapes early load balance before any architectural change. A smaller initialization scale keeps logits less extreme, improves routing diversity, and reduces balance loss without adding new auxiliary-loss machinery.
